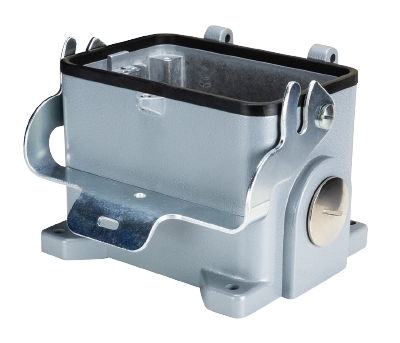

48 Pole Closed Base 1xM32 + 1 metal lever | 70.331.4835.0
Bottom-base revos basic made of aluminum, with single locking lever andthreaded hole M32 on the left side, low version, 48-polig
| Attribute | Value |
|---|---|
| Housing material: | Aluminum |
| Color: | Grey |
| Surface: | With powder coating |
| Degree of protection (IP): | Other |
| UV resistant: | Yes |
| Inflammability class of insulation material acc. with UL94: | Other |
| Operating temperature range min.: | -40°C |
| Operating temperature range max.: | 120°C |
| Construction: | 48 |
| Model of the housing: | Surface mounting (base) |
| Locking mechanism: | Single locking lever |
| Cable Entry: | Sideways |
| Type of Cable: | Thread |
| With cable screw gland: | No |
| Hinged lid: | No |
| Emc-version: | No |
| Length: | 146mm |
| Width: | 120mm |
| Height: | 101mm |
| ECLASS 8.1: | 27440202 |
| ETIM 9.0: | EC000437 |
| ETIM 8.0: | EC000437 |
| ETIM 7.0: | EC000437 |
| ETIM 6.0: | EC000437 |
| ETIM 5.0: | EC000437 |
| ETIM 4.0: | EC000437 |
| ROHS conformity status: | Compliant/exempted |
| ROHS Exceptions: | III-6(c) |
| REACH-SVHC conformity status: | Duty-To-Declare |
| REACH-SVHC substances: | Lead |
| REACH-SVHC CAS numbers: | 7439-92-1 |
| ETIM 3.0: | EC000437 |
| Thread Size M: | 32 |
