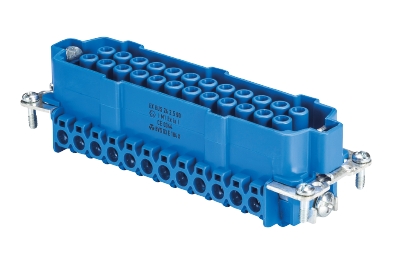

48 Pole Socket Insert-Female 2×24 pole | 70.300.4840.0
Female insert revos basic, screw type, 48-poles, rated current: 16A, rated voltage:500V, with tin-plated contacts
| Attribute | Value |
|---|---|
| Color: | Blue |
| Surface: | Tin-plated |
| Operating temperature range min.: | -20°C |
| Operating temperature range max.: | 60°C |
| ECLASS 8.1: | 27440205 |
| ETIM 9.0: | EC000438 |
| ETIM 8.0: | EC000438 |
| ETIM 7.0: | EC000438 |
| ETIM 6.0: | EC000438 |
| ETIM 5.0: | EC000438 |
| ETIM 4.0: | EC000438 |
| ROHS conformity status: | Compliant/exempted |
| ROHS Exceptions: | III-6(c) |
| REACH-SVHC conformity status: | Duty-To-Declare |
| REACH-SVHC substances: | Lead |
| REACH-SVHC CAS numbers: | 7439-92-1 |
| Model: | Female insert |
| Mating cycles: | 200 |
| Pollution degree: | 3 |
| Connection Type: | Screw connection |
| Number of poles: | 24 |
| Min. Conductor Cross Section Flexible Wire: | 0.5mm² |
| Max. Conductor Cross Section Flexible Wire: | 2.5mm² |
| Contact material: | Copper alloy |
| Contact Resistance: | ?1.5mOhm |
| Wire strip length: | 7mm |
| Nominal voltage: | 90V |
| Explosion-tested Version: | Yes |
| Note: | Max. input current 16A by permitted wire cross section 1.5 till 2.5mm²;max. input current 10A by permitted wire cross section 1.0 mm²;max. input current 6 A by permitted wire cross section 0.75 mm²;max. input current 3 A by permitted wire cross section 0.5 mm² |
