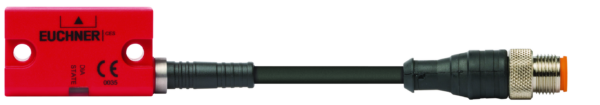

CES-I-AR-M-C04-USA-119479 : Safety Switch
Non-contact safety switches CES-I-AR-.-C04- , M12
| Attribute | Value |
|---|---|
| Mounting type: | non-flush on metal |
| Degree of protection: | IP67 |
| Ordernumber: | 119479 |
| Item designation: | CES-I-AR-M-C04-USA-119479 |
| Gross weight: | 0,111kg |
| Customs tariff number: | 85365019000 |
| ECLASS: | 27-27-24-03 Safety-related transponder switch |
| Rated insulation voltage Ui: | 300 V |
| Rated impulse withstand voltage Uimp: | 1.5 kV |
| EMC protection requirements: | Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3: | max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device: | max. 5 ms |
| Safety Class: | III |
| Current consumption: | max. 35 mA(without taking into account the load currents on the monitoring output and the safety outputs) |
| Degree of contamination (external, according to EN 60947-1): | 3 |
| Output Type: | Semiconductor outputs, p-switching, short circuit-proof |
| Rated Conditional Short-circuit Current: | 100 A |
| Discrepancy time: | max. 10 ms |
| Off-state Current Ir: | max. 0.25 mA |
| Test Pulse Duration: | max. 1.0 ms(Applies to a load with C<= 30 nF and R<= 20 kohm) |
| Test Pulse Interval: | min. 140 ms |
| Connection Type: | Connecting cable PUR, length 1 m, with plug connector M12, 8-pin |
| Ready Delay: | 10 s |
| Installation Orientation: | any |
| Switching frequency: | max. 1 Hz |
| Shock And Vibration Resistance: | Acc. to EN IEC 60947-5-3 |
| The following applies to the approval according to UL: | Operation only with UL Class 2 power supply or equivalent measures |
| Additional feature: | Rubber support included |
| Switching hysteresis: | 1 … 2 mm |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | -25 … +65 °C |
| Cable ambient temperature (static): | -25 … +65 °C |
