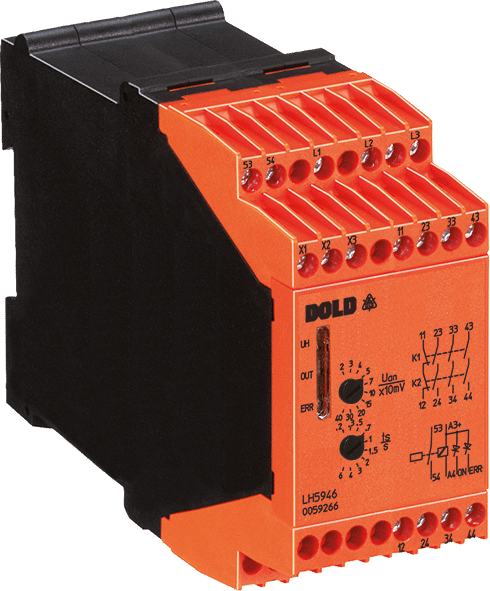

DOLD – LH 5946 | Standstill Monitor Relay – 0061230
The DOLD LH 5946 standstill speed monitor works without the need for encoder sensors or proximity switches. The LH 5946 is most suitable for detection of standstill of 3/1-phase electric motors unilaterally. It functions by measuring the induced EMF of the costing motor. If the induced EMF is near ‘0’, this triggers standstill state – activating the output relay.
| ITEM NUMBER | PRODUCT PART NUMBER | SUPPLY VOLTAGE (DC) | CONTACTS |
|---|---|---|---|
| 0061230 | LH5946.48PC/61 | 24Â V | 3 NO contacts, 1 NC contact |
Connection Example
| Attribute | Value |
|---|---|
| Width: | 45 mm |
| Classification: | Sensor less |
| Cat. / PL: | 4/e |
| SIL CL: | 3 |
| Max supply voltage: | 24 V AC, DC |
| Channel: | 2 |
| Connection: | Screw terminals, Pluggable screw terminals, Pluggable cage clamp terminals |
| Indicator contacts: | 2 Semiconductor monitoring outputs, 1 NO contact |
| Measuring motor voltage max: | 690 V |
| Forcibly guided output contacts max: | 1 NC contact, 3 NO contacts |
| Housing protection std: | IP 40 IEC/EN 60529 |
| Terminals protection std: | IP 20 IEC/EN 60529 |
EN ISO 13849-1
IEC/EN 62061
IEC/EN 61508
IEC/EN 61511
EN 61800-5-2
IEC/EN 60947-5-1
IEC/EN 61326-3-1
EN61000-6-7
EN 55011
IEC/EN 60529
IEC/EN 60068-2-6
IEC/EN 60068-1
EN 50005
DIN 46228-1/-2/-3/-4
IEC/EN 60715
