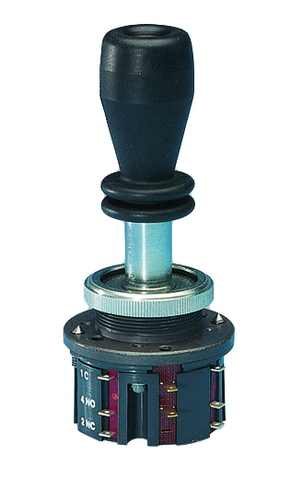

Euchner 025554E | WKT1234VDW : Joystick
The WKT1234VDW joystick provides precise control for various applications, enhancing user interaction.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Short circuit protection according to IEC 60269-1: | T6/F10 |
| Connection Type: | Tab connector 2.8×0.5 IEC760 |
| Actuating force: | 3 N |
| Mechanical Life: | 0.5 x 10? |
| Switching principle: | 1 contact |
| Ambient temperature: | -5 … +65 °C |
| Item designation: | WKT1234VDW |
| Gross weight: | 0,219kg |
| ECLASS: | 27-37-14-04 Control switch, joystick |
| Number of monitoring contacts: | 4(4 directions) |
| Actuating directions: | 4(Pushbutton) |
| Mounting cut-out: | D30 (EN IEC 60947-5-1) |
| Electrical Life: | 0.5 x 10? |
| Product Number | Variant Description |
|---|---|
| WKT1234VDW : Joystick | (No others) |
