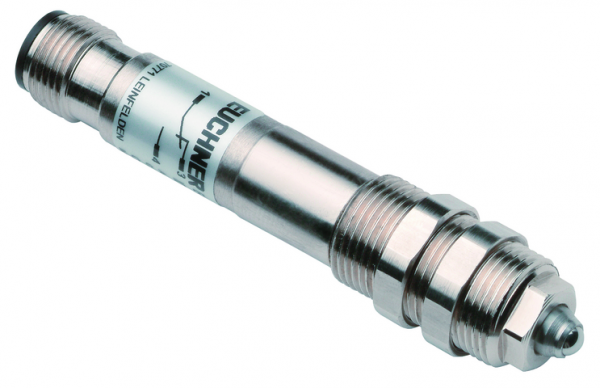

Euchner 054250E | EGT1SEM4C1613 : Single Hole Limit Switch
The EGT1SEM4C1613 is a single hole limit switch that provides reliable position sensing and control in industrial environments.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 50 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Short circuit protection according to IEC 60269-1: | 2A gG |
| Approach speed: | 0.01 … 8 m/min |
| Connection Type: | Plug connector M12(4-pin) |
| Number NC contacts: | 1(Changeover contact) |
| Number of NO contacts: | 1(Changeover contact) |
| Design: | Thread M14 x 1 |
| Actuating element: | Ball plunger(short) |
| Actuating force: | 20 N |
| Installation Orientation: | any |
| Mechanical Life: | 1 x 10? |
| Switching principle: | Snap-action contact element |
| Degree of protection: | IP67(Mating connector inserted and screwed tight.) |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | EGT1SEM4C1613 |
| Gross weight: | 0,065kg |
| ECLASS: | 27-27-06-01 Position switch (Type 1) |
| Repeat Accuracy (absolute): | ±0.01 mm(on axial actuation in the retracted state after approx. 2,000 operating cycles) |
| Product Number | Variant Description |
|---|---|
| EGT1SEM4C1613 : Single Hole Limit Switch | (No others) |
