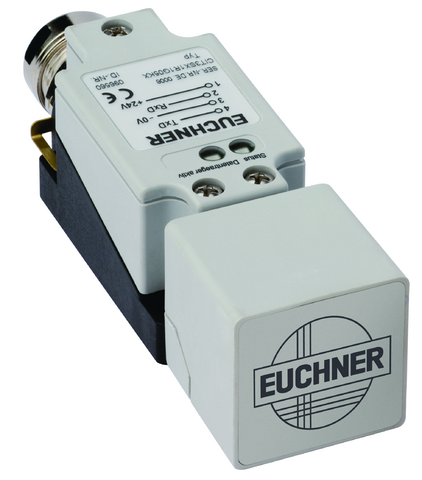

Euchner 077890E | CIT3ASX1R1G05KX : Write-Read Head
The Write-Read Head is a device that allows for data writing and reading on electronic keys, facilitating secure data management.
| Attribute | Value |
|---|---|
| Connection Type: | Screw terminal |
| Degree of protection: | IP65 |
| Ambient temperature: | 0 … +55 °C |
| Item designation: | CIT3ASX1R1G05KX |
| Gross weight: | 0,378kg |
| ECLASS: | 27-28-04-01 Identification, RFID Reader |
| Operating voltage DC: | 20 … 24 … 28 V DC(All the electrical connections must either be isolated from the mains supply by a safety transformer according IEC/ EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.) |
| Current consumption: | max. 140 mA |
| Cable length: | max. 5 m for RS232 |
| Date Interface: | RS232 |
| Data Protocol: | 3964R via RS232 8 data bits, even parity |
| Data Rate: | 9,6 kbit/s |
| Product Number | Variant Description |
|---|---|
| CIT3ASX1R1G05KX : Write-Read Head | CIT3SX1R1G05KX : Write-Read Head |
