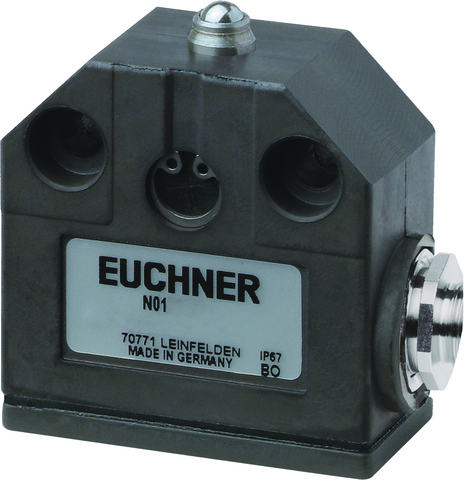

Euchner 089619E | N01K550-MC2018 : Single Plunger
Single plunger component ideal for use in various mechanical applications.
| Attribute | Value |
|---|---|
| Connection Cross Section: | 0.14 … 1 mm²(Soldered connection) |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Short circuit protection according to IEC 60269-1: | 6A gG |
| thermal rated current Ith: | 6 A |
| Approach speed: | 0.01 … 8 m/min |
| Actuating force: | 15 … 20 N |
| Installation Orientation: | any |
| Mechanical Life: | 10 x 10? |
| Switching principle: | Changeover contact with snap-action function |
| Degree of protection: | IP67 |
| Ambient temperature: | -5 … +80 °C |
| Item designation: | N01K550-MC2018 |
| Gross weight: | 0,089kg |
| ECLASS: | 27-27-06-01 Position switch (Type 1) |
| Number of door position NO contacts: | 1(Changeover contact) |
| Number of door position NC contacts: | 1 Changeover contact |
