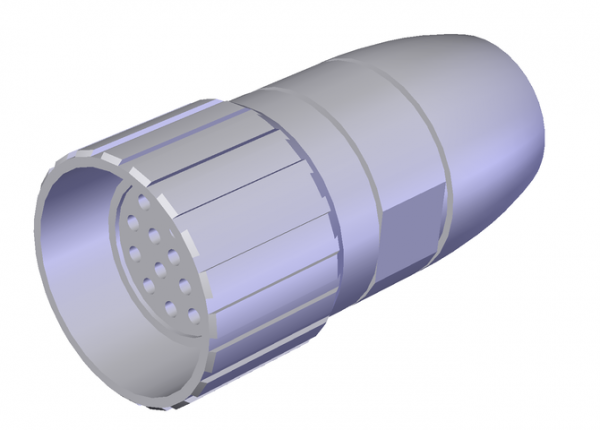

Euchner 096481E | STECKVERBINDER 17POL RC-17P1N8A80CP : Connector
The STECKVERBINDER 17POL RC-17P1N8A80CP is a reliable 17-pin connector suitable for robust electrical connections.
| Attribute | Value |
|---|---|
| Connection Cross Section: | 0.14 … 0.56 mm² |
| Degree of protection: | IP67 |
| Ambient temperature: | -20 … +125 °C |
| Item designation: | STECKVERBINDER 17POL RC-17P1N8A80CP |
| Gross weight: | 0,08kg |
| Rated voltage: | 150 V |
| Cable Outlet: | straight |
| Number of pins: | 17 |
| Plug lock: | Screw connection |
| Cable diameter: | max. 10 mm |
| Plug connector designation: | RC17 |
| Rated Current I: | 8000 mA(per contact at 25 °C) |
| Screen Connection: | via housing connection |
| Product Number | Variant Description |
|---|---|
| STECKVERBINDER 17POL RC-17P1N8A80CP : Connector | (No others) |
