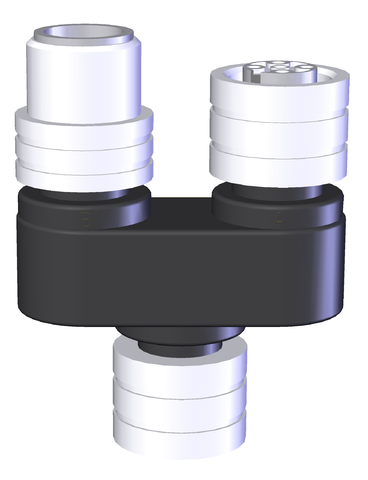

Euchner 097627E | AC-YD-SBB-097627 : Y-Distributor M12
The Y-Distributor M12 is designed to split a single M12 connection into multiple outputs, ensuring efficient signal distribution.
| Attribute | Value |
|---|---|
| Rated insulation voltage Ui: | 300 V |
| Rated impulse voltage Uimp: | 0.8 kV |
| Connection Type: | Male plug |
| Degree of protection: | IP65/IP67(Only in the screwed tight state with the relating mating components.) |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | AC-YD-SBB-097627 |
| Gross weight: | 0,033kg |
| Rated voltage: | 30 V |
| Contact Resistance: | ?5 m? |
| Degree of contamination according to EN 60664-1: | 3 |
| Type Specification: | DIN EN 61076-2-101 |
| Cable Outlet: | straight |
| Number of pins: | 5 |
| Plug lock: | Screw terminal |
| Insertion Cycles: | 100 |
| Product Number | Variant Description |
|---|---|
| AC-YD-SBB-097627 : Y-Distributor M12 | (No others) |
