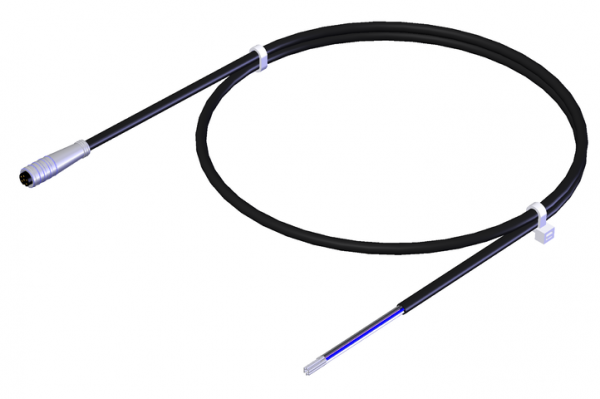

Euchner 103558E | C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable
The C-R08F06-06X014PV15,0-ES-103558 is a high-quality connecting cable designed for reliable electrical connections in various applications.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | IP67(in the inserted state) |
| Item designation: | C-R08F06-06X014PV15,0-ES-103558 |
| Gross weight: | 0,44kg |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Rated voltage: | 30 V |
| Degree of contamination according to EN 60664-1: | 3 |
| Cable Outlet: | straight |
| Number of pins: | 6 |
| Plug lock: | Snap-on |
| Insertion Cycles: | 100 |
| Dynamic bending radius: | 10 x cable diameter |
| Static bending radius: | 5 x cable diameter |
| Cable ambient temperature (dynamic): | 0 … +70 °C |
| Cable ambient temperature (static): | -30 … +70 °C |
| Cable length: | 15 m |
| Specific Inductance: | 0.65 mH/km |
| Specific Capacitance: | 128 nF/km |
| Specific Conductor Resistance: | 150 ?/km |
| Conductor Identification: | Color code |
| Conductor Cross-section: | 0.14 mm² |
| Number of conductors: | 6 |
| Fire Behavior: | according to VDE 0472 |
| Cable Type: | straight |
| Sheath Color: | gray |
| Drag chain suitability: | no |
| UV resistance: | largely according to VDE0472 |
| Conductor End: | Cable end sleeve |
| Product Number | Variant Description |
|---|---|
| C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV10,0-ES-103557 : Connecting Cable |
| C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV05,0-ES-103556 : Connecting Cable |
| C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV20,0-ES-103559 : Connecting Cable |
| C-R08F06-06X014PV15,0-ES-103558 : Connecting Cable | C-R08F06-06X014PV25,0-ES-103560 : Connecting Cable |
