| Connection Cross Section: |
0.34 … 1.5 mm² |
| Rated insulation voltage Ui: |
50 V |
| Rated impulse voltage Uimp: |
2.5 kV |
| Short circuit protection according to IEC 60269-1: |
2A gG |
| thermal rated current Ith: |
2 A |
| Approach speed: |
max. 20 m/min |
| Actuating force: |
10 N |
| Installation Orientation: |
any |
| Mechanical Life: |
1 x 10? |
| Switching principle: |
Slow-action switching contact |
| Degree of protection: |
IP54 |
| Ambient temperature: |
-20 … +55 °C |

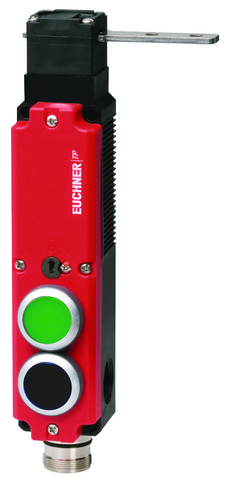

| Item designation: |
TP3-4121A024BHA12EXT1A |
| Gross weight: |
0,552kg |
| ECLASS: |
27-27-26-03 Safety switch with guard control |
| Locking force FZh: |
1000 N |
| Guard locking principle: |
Closed-circuit current principle |
| Number of door position NO contacts: |
1 |
| Extraction Force: |
20 N |
| Actuation frequency: |
max. 1200 1/h |
| Retention Force: |
10 N |
| Number of door position NC contacts: |
1 |
| Locking force Fmax: |
1300 N |
| Power consumption: |
8 W |
| Solenoid Duty Cycle: |
100 % |
| Number of guard lock monitoring positively driven contacts: |
2 |
| Horizontal Overtravel: |
7 mm |
| Vertical overtravel: |
1.5 mm |
