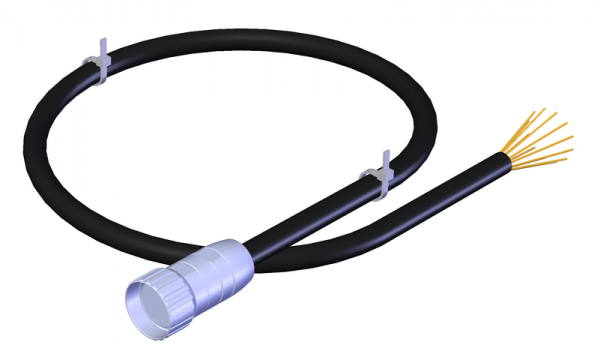

Euchner 112912E | C-M27F26-PU20,0-MA-112912 : Connecting Cable
The C-M27F26-PU20,0-MA-112912 is a durable connecting cable suitable for a range of electrical connections.
| Attribute | Value |
|---|---|
| Connection Type: | Female plug |
| Degree of protection: | IP65(locked) |
| Item designation: | C-M27F26-PU20,0-MA-112912 |
| Gross weight: | 4,367kg |
| ECLASS: | 27-06-03-04 Appliance cord (data cable) |
| Nominal current: | 4 A |
| Cable Outlet: | straight |
| Number of pins: | 26(23+3) |
| Plug lock: | Screw connection |
| Insertion Cycles: | 50 |
| Dynamic bending radius: | 10x cable diameter |
| Cable ambient temperature (dynamic): | -25 … +80 °C |
| Cable ambient temperature (static): | -25 … +80 °C |
| Cable length: | 20 m |
| Conductor Identification: | Numeric code |
| Conductor Cross-section: | 23x 0.5 mm² + 3x 1 mm² |
| Number of conductors: | 26 |
| Cable Type: | straight |
| Sheath Color: | Window gray RAL 7040 |
| Drag chain suitability: | yes |
| Conductor End: | Sheath stripped |
| Plug connector designation: | RC |
| Halogen-free: | yes |
| Product Number | Variant Description |
|---|---|
| C-M27F26-PU20,0-MA-112912 : Connecting Cable | (No others) |
