| Switching current: |
max. 15 mA |
| Connection Type: |
Hard-wired encapsulated cable with cable end sleeves 0.25 mm2 |
| Number NC contacts: |
1 NC contact |
| Number of NO contacts: |
1 NO contacts |
| Design: |
B |
| Installation Orientation: |
any |
| Mechanical Life: |
100 x 10? |
| Degree of protection: |
IP67 |
| Ambient temperature: |
-5 … +55 °C |
| Item designation: |

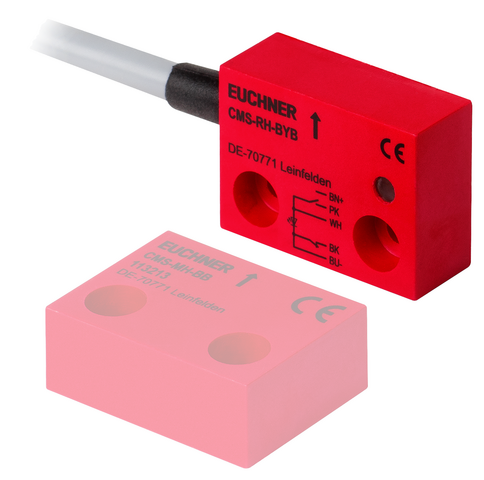

CMS-RH-BYB-03VL |
| Gross weight: |
0,18kg |
| ECLASS: |
27-27-24-02 Safety-related magnetic proximity switch |
| Current consumption: |
max. 35 mA |
| Tightening torque: |
0.4 … 0.5 Nm |
| Secured Switch-off Distance Sar: |
max. 13 mm(The assured release distance s_ar corresponds to the reset distance.) |
| LED Display: |
1 LED green |
| Cable length: |
3 m |
| Method of Operation: |
Hall sensor |
| Switching characteristics: |
NO + NC |
| in compliance with: |
EN ISO 13849-12015; EN 501781997; EN 60204-12006/A12009; EN ISO 141192013; EN 61000-6-22005; EN 61000-6-32007/A12011; EN 60947-5-32013 |
