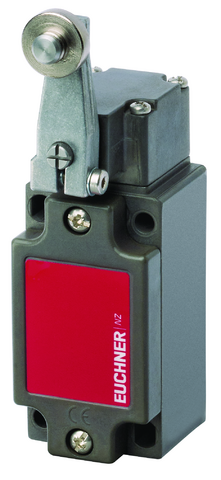

Euchner 116922E | NZ1HB-2121-M : Precision Single Limit Switch
The Precision Single Limit Switch NZ1HB-2121-M is engineered for accurate position detection in automated systems.
| Attribute | Value |
|---|---|
| Connection Cross Section: | 0.34 … 1.5 mm² |
| Rated insulation voltage Ui: | 250 V |
| Rated impulse voltage Uimp: | 2.5 kV |
| Short circuit protection according to IEC 60269-1: | 4A gG |
| thermal rated current Ith: | 4 A |
| Approach speed: | 0.1 … 60 m/min |
| Actuating force: | min. 15 N |
| Installation Orientation: | any |
| Mechanical Life: | 30 x 10? |
| Switching principle: | Slow-action switching contact |
| Degree of protection: | IP67 |
| Ambient temperature: | -25 … +80 °C |
| Item designation: | NZ1HS-2121-M |
| Gross weight: | 0,351kg |
| ECLASS: | 27-27-26-01 Safety position switch (Type 1) |
| Number of door position positively driven contacts: | 4 |
| Product Number | Variant Description |
|---|---|
| NZ1HB-2121-M : Precision Single Limit Switch | (No others) |
