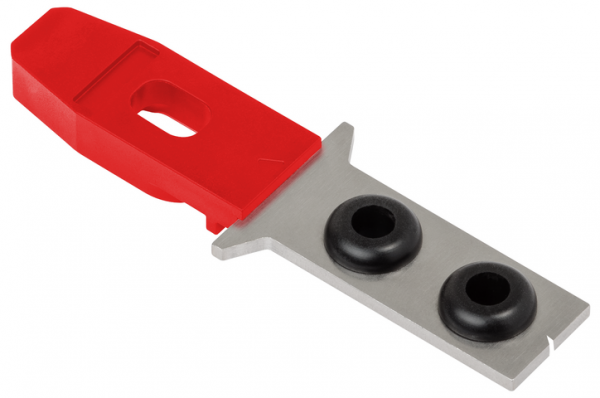

Euchner 161675E | A-C-H-G-SST-161675 : Actuator
The Actuator A-C-H-G-SST-161675 is designed for precise control in automated systems, ensuring reliable performance in various applications.
| Attribute | Value |
|---|---|
| Mechanical Life: | 1 x 10? |
| Degree of protection: | IP67/IP69/IP69K |
| Ambient temperature: | -20 … +55 °C |
| Item designation: | A-C-H-G-SST-126015 |
| Gross weight: | 0,039kg |
| ECLASS: | 27-27-24-04 Actuator for safety-related proximity switch |
| Power Supply: | Inductive via read head |
| Overtravel: | 5 mm |
| Locking force FZh: | 3000 N(FZH = FMAX/1.3) |
| Locking force Fmax: | 3900 N |
| Product Number | Variant Description |
|---|---|
| A-C-H-G-SST-161675 : Actuator | (No others) |
