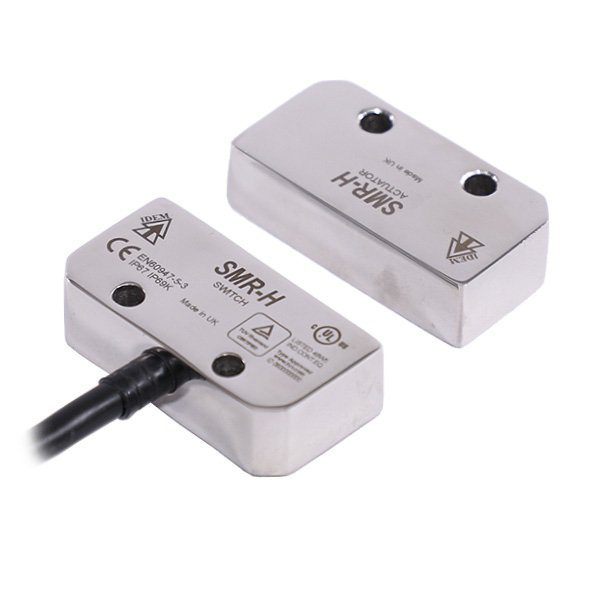

Idem 132009: SMR-H 2NC 2M | Non-Contact Safety Switches
“Reliable magnetic safety switch for non-contact interlock systems.”
| Attribute | Value |
|---|---|
| Coding Level according to EN ISO 14119: | Low |
| Technology: | Magnetic |
| Housing Material: | 316 Grade Stainless Steel |
| Normally Closed Contacts: | Up to 2 N/C Safety (When the Guard is Closed) |
| Normally Open Contacts: | Up to 1 N/O Auxiliary (When the Guard is Closed) |
| Tolerance to Misalignment: | 5mm in any direction from 5mm setting gap |
| Connectivity: | 2m, 5m, 10m, M12 QC |
| Length: | 50mm |
| Width: | 25.5mm |
| Height: | 14mm |
| IP Rating: | IP67, IP69K |
| Ambient Temperature: | -25 … +105 °C |
| Storage Temperature: | -25 … +105 °C |
| Switching Frequency: | 1.0Hz max. |
| Approach Speed: | 200mm/m. to 1000mm/s |
| Cable: | PVC 6.0mm OD Conductors 0.25 sq.mm |
| ISO 13849-1: | Up to PLe Category 4 (if both channels are used with a PLe control device) |
| UL Info: | Suitable for Direct Contact Zones in accordance with EHEDG guidelines. Through hole fixing that enables front mounting by hexagon head bolts to give no food trap areas. |
| Certificates: | TUV, cULus |
| Contact Release Time: | <2ms |
| Switching Current, Minimum: | 10V. Dc 1mA |
| Switching Voltage, Maximum (2NC): | 240V.ac / 24V.dc 1.0A. max. Fuse externally 0.8(F) |
| Auxiliary Circuits (NO): | 24V.ac/dc 0.2A. max. |
| B10d: | 3,300,000 cycles at 100mA load |
| Usage: | 8 cycles/hour 24 hours/365 days per year MTTFd is 470 years |
| Product Number | Variant Description |
|---|---|
| 132011 | SMR-H 2NC 10M |
| 132010 | SMR-H 2NC 5M |
| 132012 | SMR-H 2NC QC-M12 8way |
| 132015 | SMR-H 2NC 1NO 10M |
| 132014 | SMR-H 2NC 1NO 5M |
| 132013 | SMR-H 2NC 1NO 2M |
| 132016 | SMR-H 2NC 1NO QC-M12 8way |
