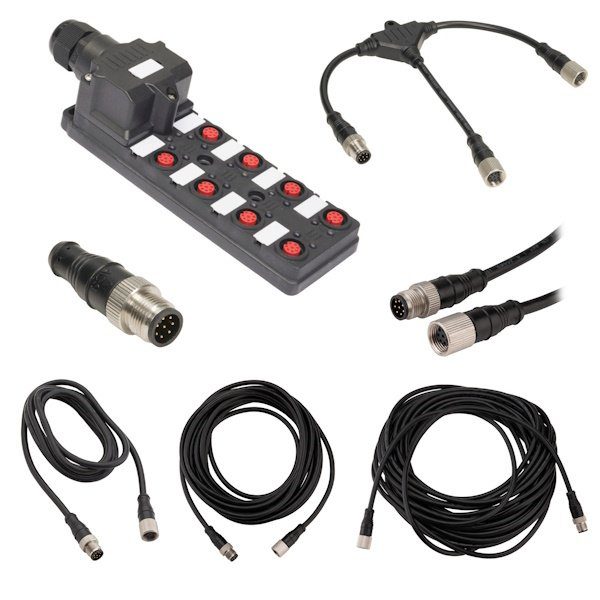

Idem 140212: Connection Box non-contact RFID & coded switches 5M cable | Non-Contact Safety Switches
“IDEM’s Connection Block for Coded, RFID Safety Switch accessories.”
| Attribute | Value |
|---|---|
| Indication: | LED 1-8 (Red) Auxiliary indication of switch open |
| Ambient Temperature: | -20 … +40 °C |
| Enclosure: | Type 1 |
| Body Material: | Polyester |
| Port Connection Type: | 8 x 8 Pin M12 Female sockets |
| Supply Voltage: | 24V.dc (+/- 10%) |
| Maximum Current: | 500mA |
| Internal Terminals: | Screw type – clamp 16-30AWG conductors |
| Cable Exit: | M20 cable gland |
| Mounting: | 2 x M4 bolts (4.6mm dia. clearance holes) |
| Accessory: | Shorting plug for unused ports |
| Maximum Temperature: | +40 °C |
| Terminals: | 16-30AWG conductors |
| Terminal Torque: | 6 lb-ins. (0.7Nm) |
| Product Number | Variant Description |
|---|---|
| 140212-CS2-7M | Connection Box non-contactRFID & coded switches7m 8 port |
