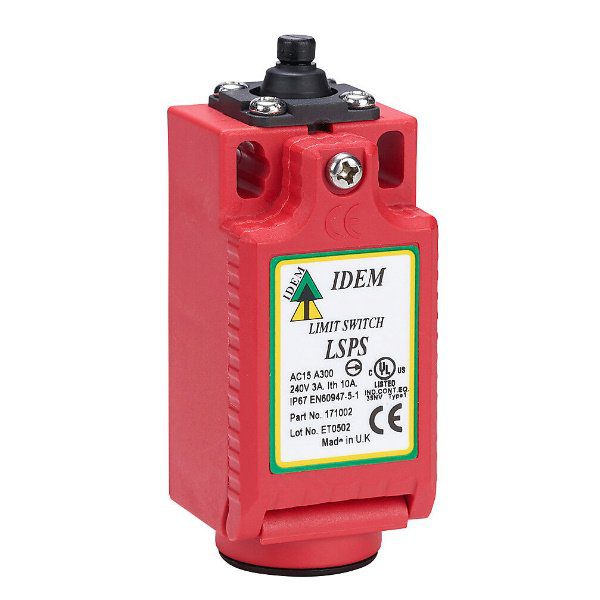

Idem 173007: LSPS-R 1NC 1NO Pin Plunger M20 Snap | Safety Switch Accessories
“Robust plastic safety limit switches with pin plunger mechanism.”
| Attribute | Value |
|---|---|
| Approvals: | cULus |
| Housing Material: | UL approved glass-filled plastic |
| UL Info: | Type 1 Enclosures. Electrical Rating A300 240V.ac 3A. (6,000 cycles) 120V. 60A. Making 6A. Braking PF >0.38 (100,000 cycles). 240V. 10A. carry only. Use 16 – 12AWG copper conductors, rated 90ºC minimum. Intended for same polarity use and one polymeric conduit connection. |
| Thermal Current (Ith): | 10A |
| Enclosure Protection: | IP67 |
| Operating Temperature: | -25 … +80 °C |
| Lever Material: | Various Polymers Steels |
| Positive Opening Operation: | NC Contacts |
| Utilization Category: | AC15 A300 240V. 3A. |
| Actuation Force /Torque for Positive Opening: | 1.0Nm |
| Min Current: | 5V, 5mA, DC |
| Rated Insulation Voltage: | 300VAC |
| Rated Impulse Withstand Volt: | 2500VAC |
| Max. Switching Speed: | 250mm/s |
| Mechanical Life Expectancy: | 2,500,000 Cycles |
| Electrical Life Expectancy At Full Load: | 100,000 Cycle min. |
| Product Number | Variant Description |
|---|---|
| 173071 | LSPS-R 1NC 1NO Lever Arm 1/2″NPT Snap |
| 173018 | LSPS-R 1NC 1NO Roller Plunger QC-M12 Snap |
| 173017 | LSPS-R 1NC 1NO Roller Plunger 1/2″NPT Snap |
| 173016 | LSPS-R 1NC 1NO Roller Plunger M20 Snap |
| 173063 | LSPS-R 1NC 1NO Adj Roller Lever QC-M12 Snap |
| 173062 | LSPS-R 1NC 1NO Adj Roller Lever 1/2″NPT Snap |
| 173061 | LSPS-R 1NC 1NO Adj Roller Lever M20 Snap |
| 173045 | LSPS-R 1NC 1NO Roller Lever QC-M12 Snap |
| 173009 | LSPS-R 1NC 1NO Pin Plunger QC-M12 Snap |
| 173008 | LSPS-R 1NC 1NO Pin Plunger 1/2″NPT Snap |
| 173052 | LSPS-R 1NC 1NO Lg Roller Lever M20 Snap |
| 173053 | LSPS-R 1NC 1NO Lg Roller Lever 1/2″NPT Snap |
| 173054 | LSPS-R 1NC 1NO Lg Roller Lever QC-M12 Snap |
| 173025 | LSPS-R 1NC 1NO Hinge Lever M20 snap |
| 173026 | LSPS-R 1NC 1NO Hinge Lever 1/2″NPT snap |
| 173027 | LSPS-R 1NC 1NO Hinge Lever QC-M12 snap |
| 173044 | LSPS-R 1NC 1NO Roller Lever 1/2″NPT Snap |
| 173043 | LSPS-R 1NC 1NO Roller Lever M20 Snap |
| 173072 | LSPS-R 1NC 1NO Lever Arm QC-M12 Snap |
| 173034 | LSPS-R 1NC 1NO Long Hinge Lever M20 snap |
| 173035 | LSPS-R 1NC 1NO Long Hinge Lever 1/2″NPT snap |
| 173036 | LSPS-R 1NC 1NO Long Hinge Lever QC-M12 snap |
| 173070 | LSPS-R 1NC 1NO Lever Arm M20 Snap |
