| Approvals: |
IECEx, cULus on LS-Ex Internal Contact Block |
| Technology: |

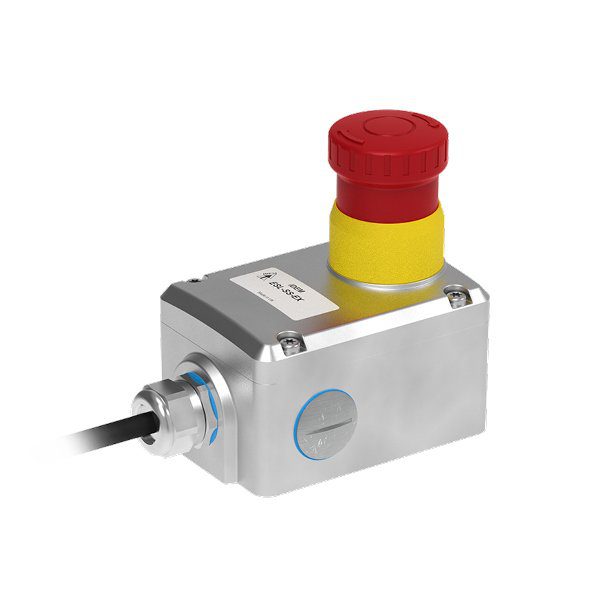

Emergency Stop, Twist-To-Release |
| Housing Material: |
316 Grade Stainless Steel |
| UL Info: |
Comes with 3m of pre-wired cable (longer available on request). ATEX Zones 1,21,2,22 II 2G Ex mb IIC T6 Gb II 2D Ex mb IIIC T80C Db |
| Enclosure Protection: |
IP67, IP69K (NEMA 6) |
| Operating Temperature: |
-25 … +80 °C |
| Switching frequency (LS-Ex): |
1.0 Hz maximum |
| Mechanical Life Expectancy (ls-ex): |
1,000,000 switches |
| Electrical Life Expectancy (ls-ex): |
Tested to 1,000,000 cycles at 24V. 0.2A |
| Button Material: |
UV Resistant Polyester |
