452001 KLTM-RR Mechanical Only M20 24V
451201 KLT-SS-RFID Uniquely coded M20 24V Front/End Lower Idem 451201: KLT-SS-RFID Uniquely coded M20 24V Front/End Lower | Solenoid Locking Switches
452201 KLTM-RFID-RR Uniquely coded M20 24V Front/End Lower Idem 452201: KLTM-RFID-RR Uniquely coded M20 24V Front/End Lower | Solenoid Locking Switches

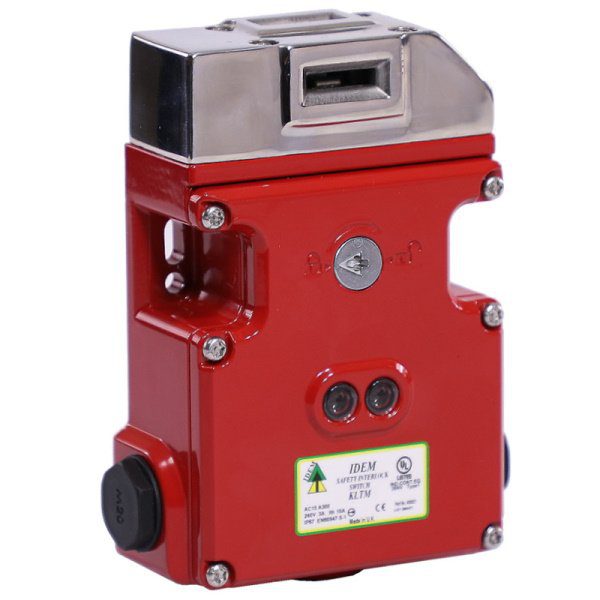

Idem 452001: KLTM-RR Mechanical Only M20 24V | Solenoid Locking Switches

“Secure electrical switch with Solenoid Guard Lock, supports 3000N.”

Request a quote

    Request a quote
    Add to wishlist
    Attribute Value
    Technology: Power to Unlock
    Approach Speed: 200mm/m. to 1000mm/s
    Certificates: cULus
    Enclosure: Type 1
    Material: Red Painted Die-Cast with Stainless Steel Head
    Overload Protection Fuse (fuse Externally): 10A. (FF).
    Enclosure Protection: IP67
    Operating Temperature: -25 … +40 °C
    Vibration: IEC 68-2-6, 10-55Hz+1Hz,Excursion 0.35mm, 1 octave/min
    Fixing: 4 x M5
    Holding Force: F1Max 3000N. Fzh 2307N
    Terminal Torque: e 6 lb ins. (0.7Nm)
    Rated Insulation Voltage: 600VAC
    Rated Impulse Withstand Volt: 2500VAC
    Conduit Entry: M20 or 1/2 NPT
    Travel for Positive Opening: 10mm
    Solenoid Voltage (by part number): 24V ac/dc or 110V. ac or 230V. ac +/- 10% (12W.)
    LED 2 Supply Voltage: 24V dc +/- 10%
    Safety Contacts 11/12 21/22: Utilization Category AC15 A300 3A. Thermal Current (Ith) 5A
    Auxiliary Contact 33/34 (selectable with LED2): 24V.ac/dc 0.5A. maximum
    Auxiliary Contact 43/44: 230V.ac/dc 0.5A. maximum
    Man. Actuation Frequency: 2 cycle/sec
    Actuator entry minimum radius: 175mm Standard 100mm Flexible
    Maximum temperature: +40 °C
    Product Number Variant Description
    452004HFH KLTM-RR Mechanical Only M20 110V HFH Actuator
    452004A KLTM-RR Mechanical Only M20 110V Std Actuator
    452004 KLTM-RR Mechanical Only M20 110V
    452003HFH KLTM-RR Mechanical Only QC-M23 24V HFH Actuator
    452003HF KLTM-RR Mechanical Only QC-M23 24V HF Actuator
    452003F KLTM-RR Mechanical Only QC-M23 24V Flat Actuator
    452004F KLTM-RR Mechanical Only M20 110V Flat Actuator
    452004HF KLTM-RR Mechanical Only M20 110V HF Actuator
    452005 KLTM-RR Mechanical Only 1/2″NPT 110V
    452006 KLTM-RR Mechanical Only QC-M23 110V
    452005F KLTM-RR Mechanical Only 1/2″NPT 110V Flat Actuator
    452005HF KLTM-RR Mechanical Only 1/2″NPT 110V HF Actuator
    452005HFH KLTM-RR Mechanical Only 1/2″NPT 110V HFH Actuator
    452007A KLTM-RR Mechanical Only M20 230V Std Actuator
    452003A KLTM-RR Mechanical Only QC-M23 24V Std Actuator
    452007 KLTM-RR Mechanical Only M20 230V
    452006HFH KLTM-RR Mechanical Only QC-M23 110V HFH Actuator
    452006HF KLTM-RR Mechanical Only QC-M23 110V HF Actuator
    452006F KLTM-RR Mechanical Only QC-M23 110V Flat Actuator
    452005A KLTM-RR Mechanical Only 1/2″NPT 110V Std Actuator
    452003 KLTM-RR Mechanical Only QC-M23 24V
    452007HF KLTM-RR Mechanical Only M20 230V HF Actuator
    452002HF KLTM-RR Mechanical Only 1/2″NPT 24V HF Actuator
    452009HFH KLTM-RR Mechanical Only QC-M23 230V HFH Actuator
    452009HF KLTM-RR Mechanical Only QC-M23 230V HF Actuator
    452009F KLTM-RR Mechanical Only QC-M23 230V Flat Actuator
    452009A KLTM-RR Mechanical Only QC-M23 230V Std Actuator
    452009 KLTM-RR Mechanical Only QC-M23 230V
    452008HFH KLTM-RR Mechanical Only 1/2″NPT 230V HFH Actuator
    452008HF KLTM-RR Mechanical Only 1/2″NPT 230V HF Actuator
    452008F KLTM-RR Mechanical Only 1/2″NPT 230V Flat Actuator
    452008A KLTM-RR Mechanical Only 1/2″NPT 230V Std Actuator
    452002HFH KLTM-RR Mechanical Only 1/2″NPT 24V HFH Actuator
    452008 KLTM-RR Mechanical Only 1/2″NPT 230V
    452006A KLTM-RR Mechanical Only QC-M23 110V Std Actuator
    452007F KLTM-RR Mechanical Only M20 230V Flat Actuator
    452001A KLTM-RR Mechanical Only M20 24V Std Actuator
    452001F KLTM-RR Mechanical Only M20 24V Flat Actuator
    452001HF KLTM-RR Mechanical Only M20 24V HF Actuator
    452001HFH KLTM-RR Mechanical Only M20 24V HFH Actuator
    452002 KLTM-RR Mechanical Only 1/2″NPT 24V
    452002A KLTM-RR Mechanical Only 1/2″NPT 24V Std Actuator
    452002F KLTM-RR Mechanical Only 1/2″NPT 24V Flat Actuator
    452007HFH KLTM-RR Mechanical Only M20 230V HFH Actuator
