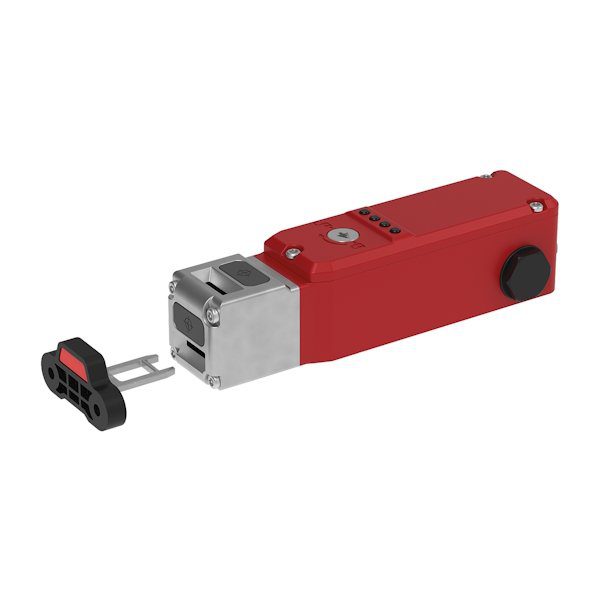

| Approvals: |
TUV, cULus |
| Technology: |
RFID, Power to Unlock |
| Housing Material: |
Painted Die-Cast Metal |
| Power Consumption: |
R+ (50mA Max.) / S+ (500mA Max.) (Solenoid) |
| Mttfd: |
771a |
| UL Info: |
Type 1 enclosure. Use Class 2 power supply or equivalent. Maximum temperature 40°C. Use 16-28AWG copper conductors (rated 90°C). Terminal Torque 6 lb ins. (0.7Nm). Intended for same polarity use. Safety Circuits (11-12 & 21-22) 24V.dc 200mA max. Use one polymeric conduit connection. Not suitable for connection to rigid metal conduit. (Earth bonding terminal inside metal enclosures (if required). Use 16-12AWG conductors) |
| Performance Level: |
e |
| Category: |
Cat 4 |
| Diagnostic Coverage DC: |
High |
| Safety Integrity Level: |
SIL 3 |
| PFH (1/h): |
1.0 E-09 (Corresponds to 1% of SIL3) |
| Proof Test Interval T1: |
20a |
| Enclosure Protection: |
IP67 |
| Operating Temperature: |
-25 … +40 °C |
| Vibration: |
IEC68-2-6, 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Supply Voltage: |
24Vdc (+/- 10%) SELV/PELV or Class 2 |
| Rated Insulation Voltage: |
500VAC |
| Head Material: |
316 Grade Stainless Steel |
| Actuator entry minimum radius: |
175mm |
| Classification and Coding Level according to EN ISO 14119: |
Type 4, High |
| Safety Circuits: |
2 OSSD PNP Outputs (24Vdc 200mA max. switching) |
| Auxiliary Circuits (34 & 44): |
24Vdc 200mA max. Output feed |
| Rated Impulse withstand: |
1000VAC |
| Mechanical Life Expectancy (b10d): |
2.5 x 10 6 cycles at 100mA load |
| Holding Force (ISO14119): |
F1Max 3000N Fzh 2307N |
| Actuator insertion for locking: |
5mm |
| Sao / Sar (RFID): |
15mm / 25mm |
| Operating Frequency: |
1Hz |
| PFD (Av.): |
8.7 E-05 (Corresponds to 9% of SIL3) |
