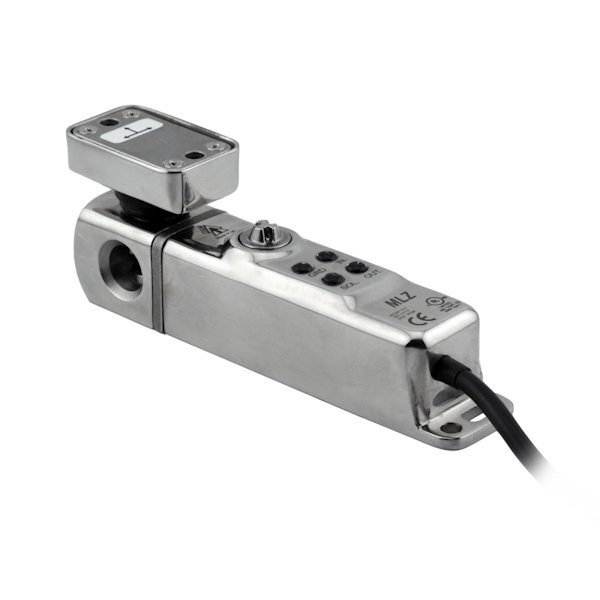

| Approvals: |
TUV (pending), cULus |
| Technology: |
RFID, Power to Unlock |
| Housing Material: |
316 Grade Stainless Steel |
| Power Consumption: |
R+ (50mA Max.) / S+ (500mA Max.) (Solenoid) |
| Mttfd: |
771a |
| UL Info: |
Type 1 enclosure. Use Class 2 power supply or equivalent.Maximum temperature 40°C. Maximum output 24V.dc 100mA. |
| Performance Level: |
e |
| Category: |
Cat 4 |
| Diagnostic Coverage DC: |
High |
| Safety Integrity Level: |
SIL 3 |
| PFH (1/h): |
1.0 E-09 (Corresponds to 1% of SIL3) |
| Proof Test Interval T1: |
20a |
| Enclosure Protection: |
IP67, IP69K (QC version is IP67 at the connector) |
| Operating Temperature: |
-25 … +55 °C |
| Vibration: |
IEC68-2-6, 10-55Hz+1Hz Excursion 0.35mm, 1 octave/min |
| Supply Voltage: |
24Vdc (+/- 10%) SELV/PELV or Class 2 |
| Outputs Rated Voltage: |
24 Vdc |
| Response Time Guard Open: |
60ms max. |
| Response Time Inputs Off: |
20ms max. |
| Actuator entry minimum radius: |
175mm |
| Outputs Max. Current: |
0.1 A |
| Outputs Min. Current: |
1 mA |
| Inputs Rated Voltage: |
24 Vdc |
| Inputs Rated Current: |
2 mA |
| Dielectric Withstand: |
250V.ac |
| Insulation Resistance: |
100 Mohms |
| Classification and Coding Level according to EN ISO 14119: |
Type 4, High |
| Mechanical Life Expectancy (b10d): |
2.5 x 10 6 cycles at 100mA load |
| Holding Force (ISO14119): |
F1Max 4000N Fzh 3077N |
| Sao / Sar (RFID): |
10mm / 20mm |
| PFD (Av.): |
8.7 E-05 (Corresponds to 9% of SIL3) |
| Outputs Type: |
OSSD, PNP |
| Adjustable Spring Ball Catch: |
Adjustable 30 100N. (Light latch) |
| Coding level (ISO14119): |
Type 4 High |
| Assured Locking distance: |
6mm |
