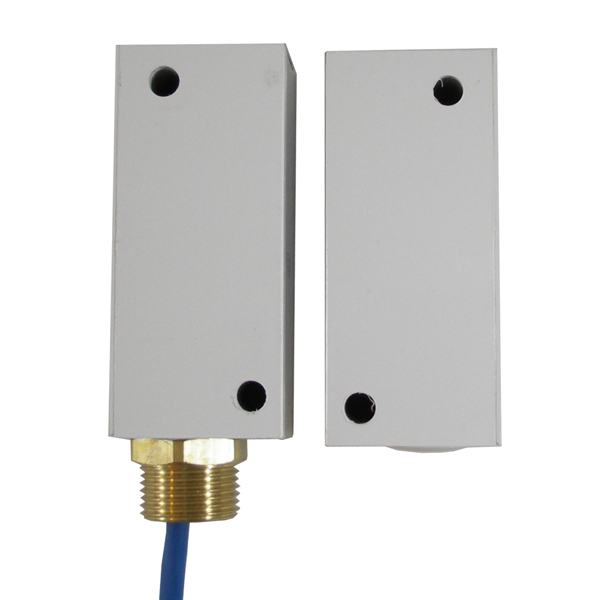

Mechan 312.008 | SFMT-5M S-TYPE SAFETY SWITCH
– Electronic safety switch
– Enhanced EMC immunity
– Fully encapsulated, IP67
– Pre-wired, 5, 10, 15 metre cable (Max 100m)
– Built in 20mm brass thread conduit glandThe SFMT electronic safety switches are the same robust design as the F-Type switches with additional protection for areas of high electronic noise pollution. Fully encapsulated into white ABS housings, with 6mm fixing holes directly through the body of the switch and a consistent 10mm switching even when mounted on metal frames, the S-Type safety switches offer the same ease of fitting and long term reliability.Request Quote
| Attribute | Value |
|---|---|
| Reset Options: | At control unit |
| Construction: | White ABS, Resin Filled |
| Indication: | At control unit |
| IP Rating: | IP67 |
| Mounting: | 4 x M6 Bolts |
| Power Consumption: | Pre-wired |
| Safety Output: | 5/10 15 metre longer to order |
| Safety Output Rating: | Electronic, Generic code |
| Coding: | 75 x 34 x 32mm |
| Input: | 75 x 34 x 32mm |
| Dimensions of Control Unit (mm): | -25°C to 55°C |
| Operating Temperature: | -25°C to 55°C |
| Storage Temperature: | PL-e, CAT 4 |
