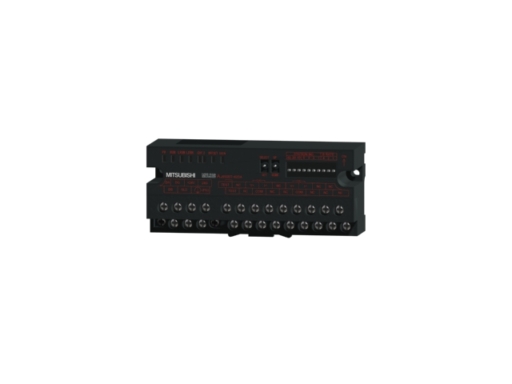

“Mitsubishi AJ65SBT-62DA Analog Output Module – 2 Channel Voltage/Current”
$1,122.00
Analog output module; 2 channel Analog output; voltage/ current
| Series: | CC-LINK |
| Type: | REMOTE ANALOG OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 54 |
| Weight (kg): | 0,25 |
| Width (mm): | 122 |
| Height (mm): | 50 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Occupied Stations: | 1 |
| Wiring: | SCREW |
| Int. Current Consumption (A): | 0,24 |
| REACH Substance CAS Number: | 80-05-77439-92-113560-89-9 |
| European Order Code: | 221863 |
| Global Order Code: | 1W5991-00102Y |
| Product Hierarchy: | IAD50501 |
| Class Description: | FA-MOD PLC Analogue I/O Module |
| External Material Group: | Standard Material |
| Logistic Class: | B |
| Gross Weight: | 0.344 KG |
| Volume: | 1.232 CDM |
| Length: | 13,8 CM |
| Width: | 8,5 CM |
| Height: | 10,5 CM |
| Commodity Code: | 85389099 |
| Country of Origin: | JP |
| Selling Status: | Standard |
| Occupied I/O Points On PLC: | 32 |
| Integrated Analogue Outputs: | 4 |
| Output Voltage Range (V): | -20 |
| Output Current Range (mA): | 0-20 |
| Predecessor: | 75446 |
