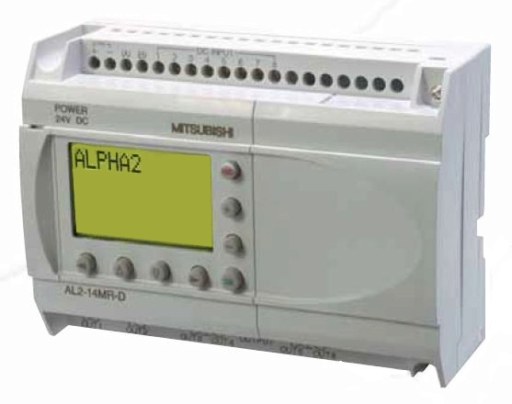

Mitsubishi AL2-14MR-D: Alpha Series PLC Base Unit
$439.20
Mitsubishi Alpha Series PLC Base Unit for industrial automation control.
| Attribute | Value |
|---|---|
| Type: | ALPHA MAIN UNIT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Program Memory: | 200 BLOCKS |
| Program Memory Unit: | EEPROM |
| Integrated Digital Inputs: | 8 |
| Integrated Digital Outputs: | 6 |
| Integrated Analogue Inputs: | 8 |
| Output Type: | RELAY |
| Local I/O Points: | 14 |
| Local + Remote I/O Points: | 14 |
| Expandable: | YES |
| RS-232: | 1 |
| Power Consumption (W): | 7,5 |
| Buffer Battery: | NO |
| Protection Class: | IP20 |
| Min. Ambient Temperature (°C): | -25 |
| Max. Ambient Temperature (°C): | 55 |
| Series: | ALPHA2 SERIES |
| Depth (mm): | 52 |
| Weight (kg): | 0,3 |
| Width (mm): | 124,6 |
| Height (mm): | 90 |
| CE: | COMPLIANT |
| Shipping Approvals: | DNV |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 65 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
