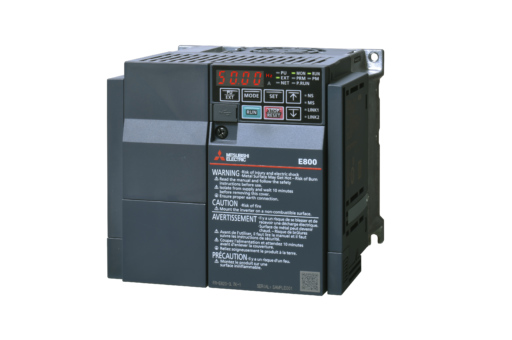

“Mitsubishi FR-E820S-0110SCEPB – 200V, 2.2kW, SC, EPB, Ethernet, SIL3/PLe, 50Hz | Variable Speed Drive (VSD)
$1,496.40
1-Phase 200V 2.2kW; SC; EPB – inc. Protocol Group B; Ethernet + SIL3/PLe; 50Hz;
| Series: | FR-E800 SERIES |
| Type: | FR-E800-ETH SAFETY CONTROL |
| Minimum Rated Voltage (V): | 200 |
| Min. Permissible Voltage (V): | 170 |
| Maximum Rated Voltage (V): | 240 |
| Max. Permissible Voltage (V): | 264 |
| Current Type: | AC |
| Phases: | 3 |
| Rated Output Current ND (A): | 0,8 |
| Rated Motor Capacity ND (kw): | 0,1 |
| Frequency Range (Hz): | 0,2–590 |
| Control Method: | MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL, V/F CONTROL |
| Motor Type: | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter: | NO |
| Safe Torque Off (STO): | YES |
| Regenerative (4Q): | NO |
| Integrated DC Choke: | NO |
| Display: | BUILT-IN |
| Display Type: | 4 DIGITS LED |
| PLC Function: | YES |
| Program Memory: | 2K |
| Program Memory Unit: | STEPS |
| Integrated Digital Inputs: | 0 |
| Digital Outputs (Transistor): | 0 |
| Digital Outputs (Relay): | 1 |
| Integrated Analogue Inputs: | 2 |
| Integrated Analogue Outputs: | 0 |
| IO Type of Terminal Block: | SPRING CLAMP |
| Expandable: | YES |
| RS-485: | NO |
| USB: | 1 (MINI B) |
| Ethernet Port: | 2 |
| Built-in Network: | EtherCAT |
| Leakage Current (mA): | 1,2 |
| Power Loss ND (W): | 12 |
| Protection Class: | IP20 |
| CE: | COMPLIANT |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
