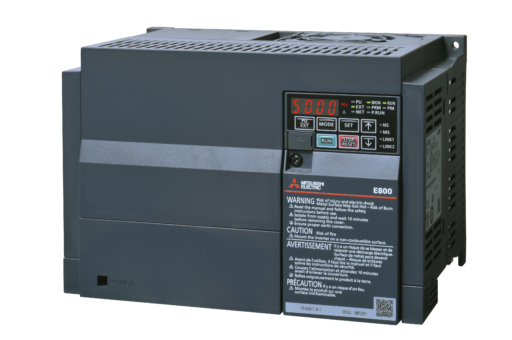

“Mitsubishi FR-E840-0170EPA-60 7.5kW 400V 3-Phase Inverter with Ethernet + SIL2/PLd” | Variable Speed Drive (VSD)
$2,790.00
3-Phase 400V 7.5kW; EPA – inc. Protocol Group A; Ethernet + SIL2/PLd; 60Hz;
| Series: | FR-E800 SERIES |
| Type: | FR-E800-ETH INVERTER |
| Minimum Rated Voltage (V): | 380 |
| Min. Permissible Voltage (V): | 323 |
| Maximum Rated Voltage (V): | 480 |
| Max. Permissible Voltage (V): | 528 |
| Current Type: | AC |
| Phases: | 3 |
| Rated Output Current ND (A): | 23 |
| Rated Motor Capacity ND (kw): | 11 |
| Frequency Range (Hz): | 0,2–590 |
| Control Method: | MAGNETIC FLUX VECTOR CONTROL, PM SENSORLESS VECTOR CONTROL, REAL SENSORLESS VECTOR CONTROL, V/F CONTROL |
| Motor Type: | INDUCTION MOTOR, PM MOTOR |
| Integrated EMC Filter: | NO |
| Safe Torque Off (STO): | YES |
| Regenerative (4Q): | NO |
| Integrated DC Choke: | NO |
| Display: | BUILT-IN |
| Display Type: | 4 DIGITS LED |
| PLC Function: | YES |
| Program Memory: | 2K |
| Program Memory Unit: | STEPS |
| Integrated Digital Inputs: | 2 |
| Digital Outputs (Transistor): | 0 |
| Digital Outputs (Relay): | 1 |
| Integrated Analogue Inputs: | 2 |
| Integrated Analogue Outputs: | 0 |
| IO Type of Terminal Block: | SPRING CLAMP |
| Expandable: | YES |
| RS-485: | NO |
| USB: | 1 (MINI B) |
| Ethernet Port: | 2 |
| Built-in Network: | MODBUS/TCP, ETHERNET/IP, CC-LINK IE TSN, CC-LINK IE FIELD BASIC, BACNET/IP |
| Leakage Current (mA): | 1,2 |
| Power Loss ND (W): | 240 |
| Protection Class: | IP20 |
| Depth (mm): | 190 |
| Weight (kg): | 4,8 |
| Width (mm): | 220 |
| Height (mm): | 260 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 1.6 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 6 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Brake Chopper ED (%): | 100 |
| REACH Substance CAS Number: | 540-97-6, 541-02-6, 7439-92-1, 556-67-2 |
| Rated Output Current LD (A): | 35 |
| Rated Motor Capacity LD (kw): | 15 |
| Power Loss LD (W): | 411 |
