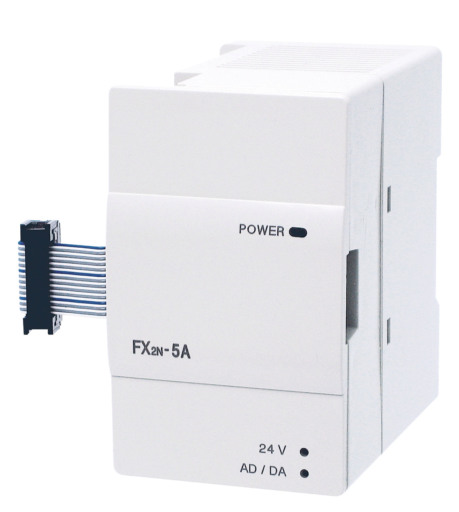

“Mitsubishi FX2N-5A Analog Module – 4 Inputs, 1 Output, Current & Voltage Range”
$1,588.80
Analog modul; 4 analog inputs, 16 bits; 1 analog output, 12 bits; for current, voltage ±100 mV
| Series: | MELSEC-F SERIES |
| Type: | FX2N |
| Depth (mm): | 87 |
| Weight (kg): | 0,3 |
| Width (mm): | 43 |
| Height (mm): | 90 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 50 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 17,8 |
| REACH Limit Exceeded: | NO |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Shipping Approvals: | ABS,DNV GL,KR,NK |
| Integrated Analogue Outputs: | 2 |
| Output Voltage Range (V): | 0-10; 0-5 |
| Output Current Range (mA): | 20-Apr |
| Min. Ambient Temperature (°C): | 0 |
| Max. Ambient Temperature (°C): | 55 |
| Occupied I/O Points On PLC: | 8 |
