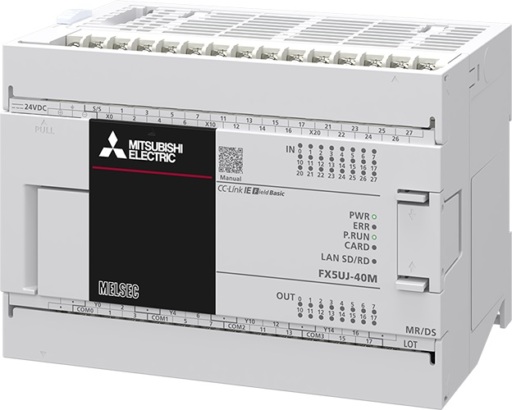

“Mitsubishi FX5UJ-40MR/ES Base Unit – 24 Inputs, 16 Relay Outputs, Ethernet, USB”
$1,767.60
Base Unit AC 100-240 V; 24 Inputs 24 V DV; 16 Relay Outputs; Ethernet; SD; USB
| Series: | MELSEC IQ-F SERIES |
| Type: | FX5UJ |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRANSISTOR |
| Output Logic: | SINK |
| Weight (kg): | 0,58 |
| CE: | COMPLIANT |
| EAC: | COMPLIANT |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 108-78-1119313-12-112060-00-3 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Integrated Digital Inputs: | 24 |
| European Order Code: | 696211 |
| Global Order Code: | 00J014 |
| Product Hierarchy: | IAD21701 |
| Class Description: | FA-COM PLC Main Unit |
| External Material Group: | Standard Material |
| Logistic Class: | B |
| Gross Weight: | 0.64 KG |
| Volume: | 3.42 CDM |
| Length: | 18 |
| Width: | 15 |
| Height: | 11 |
| Commodity Code: | 85371091 |
| Country of Origin: | JP |
| Selling Status: | Standard |
| USB: | 1 |
| Ethernet Port: | 1 |
| Program Memory: | 48K STEPS |
| Program Memory Unit: | FLASH |
| Local I/O Points: | 256 |
| Cycle Time LD (ns): | 34 |
| Cycle Time MOV (ns): | 34 |
| Power Consumption (W): | 35 |
| Min. Ambient Temperature (°C): | 0 |
| Max. Ambient Temperature (°C): | 55 |
| Predecessor: | 269921 FX3GE-40MT/DS |
