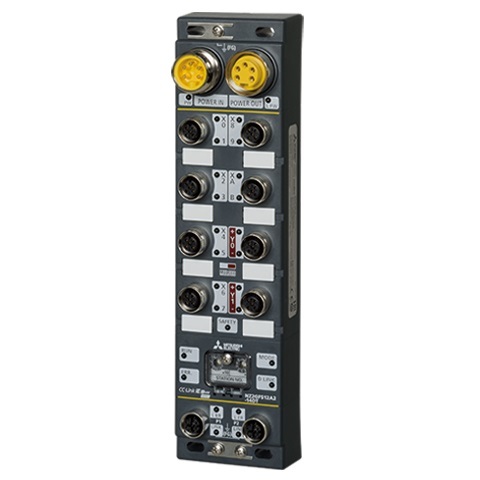

“Mitsubishi NZ2GFS12A2-14DT: 24V DC Waterproof Connector | 12 Point Input”
$3,480.00
Input 12 points with single wiring/6 points with double wiring, 24 V DC, negative common Output single wiring not possible/2 points with double wiring, 24 V DC (2.0 A), source + sink type waterproof connector, 2-wire
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | SAFETY REMOTE I/O COMBINED M. |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 48,5 |
| Weight (kg): | 0,89 |
| Width (mm): | 60 |
| Height (mm): | 235 |
| CE: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 142 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 2 |
| Wood (g): | 0 |
| Other paper (g): | 1 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Occupied Stations: | 1 |
| Integrated Digital Inputs: | 6-Dec |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,19 |
| Integrated Digital Outputs: | 2-Apr |
| Output Type: | TRANSISTOR |
| Output Logic: | SOURCE+SOURCE |
| Rated Load Voltage (VDC): | 24 |
| Rated Input Voltage (VDC): | 24 |
