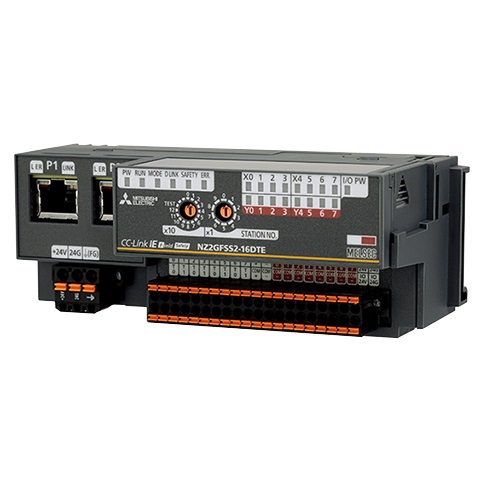

“Mitsubishi NZ2GFSS2-16DTE: 24V DC Input/Output, Quick Response Time”
$2,486.40
Input 8 points with single wiring/4 points with double wiring, 24 V DC, response time 0Â…70 ms, negative common Output 8 points with single wiring/4 points with double wiring, 24 V DC (0.5 A), source + source type spring clamp terminal block, 2-wire
| Series: | CC-LINK IE FIELD NETWORK |
| Type: | SAFETY REMOTE TRANSIST. OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Depth (mm): | 111,5 |
| Weight (kg): | 0,16 |
| Width (mm): | 23 |
| Height (mm): | 100 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 85 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 2 |
| Wood (g): | 0 |
| Other paper (g): | 1 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Occupied Stations: | 1 |
| Wiring: | SPRING CLAMP |
| Int. Current Consumption (A): | 0,02 |
| REACH Substance CAS Number: | 71868-10-5, 75980-60-8 |
| Integrated Digital Outputs: | 8 |
| Output Type: | TRANSISTOR |
| Output Logic: | SOURCE |
| Rated Load Voltage (VDC): | 24 |
