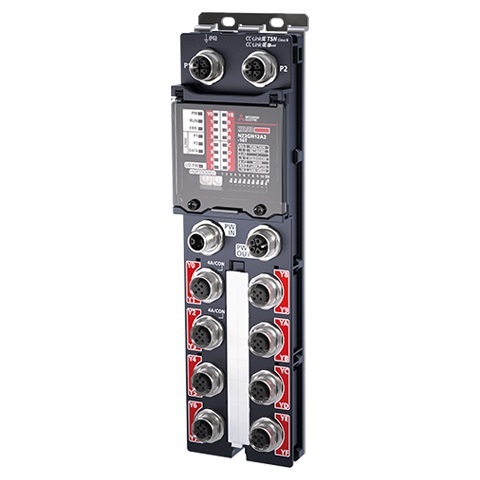

“Mitsubishi NZ2GN12A2-16T: 16pt Waterproof Connector, 12/24V DC, 2-wire”
$1,723.20
16 points, 12/24 V DC (2A, 4A), sink type, waterproof connector, 2-wire
| Series: | CC-LINK IE TSN |
| Type: | REMOTE TRANSISTOR OUTPUT |
| Power Supply (V): | 24 |
| Current Type: | DC |
| Occupied Stations: | 1 |
| Integrated Digital Outputs: | 16 |
| Output Type: | TRANSISTOR |
| Output Logic: | SOURCE |
| Rated Load Voltage (VDC): | 24-Dec |
| Wiring: | CONNECTOR |
| Int. Current Consumption (A): | 0,11 |
| Depth (mm): | 37,5 |
| Weight (kg): | 0,41 |
| Width (mm): | 63 |
| Height (mm): | 238 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 177 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 4 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 540-97-6, 541-02-6, 7439-92-1, 75980-60-8, 556-67-2 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| UKCA: | COMPLIANT |
