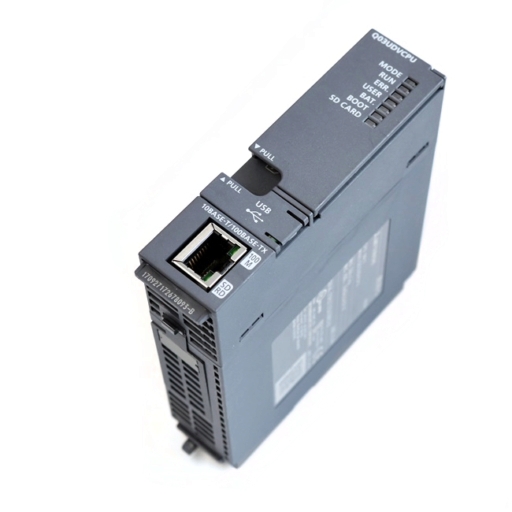

Mitsubishi Q03UDVCPU: Q-Series High-Speed Universal Model CPU
Mitsubishi’s high-speed, universal model CPU from the Q-series range.
| Attribute | Value |
|---|---|
| Series: | MELSEC-Q SERIES |
| Type: | UNIVERSAL MODEL QCPU |
| Program Memory: | 30K |
| Program Memory Unit: | STEPS |
| Local I/O Points: | 4.096 |
| Local + Remote I/O Points: | 8.192 |
| Cycle Time LD (ns): | 1,9 |
| Cycle Time MOV (ns): | 3,9 |
| USB: | 1 |
| Ethernet Port: | 1 |
| Buffer Battery: | YES |
| Int. Current Consumption (A): | 0,58 |
| Depth (mm): | 115 |
| Weight (kg): | 0,2 |
| Width (mm): | 27,4 |
| Height (mm): | 98 |
| CE: | COMPLIANT |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| EAC: | NON-COMPLIANT |
| UL/cUL: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 0 |
| Wood (g): | 0 |
| Other paper (g): | 0 |
| REACH Limit Exceeded: | YES |
| REACH Substance CAS Number: | 7439-92-1, 2451-62-9, 1303-86-2, 12060-00-3, 110-71-4 |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
