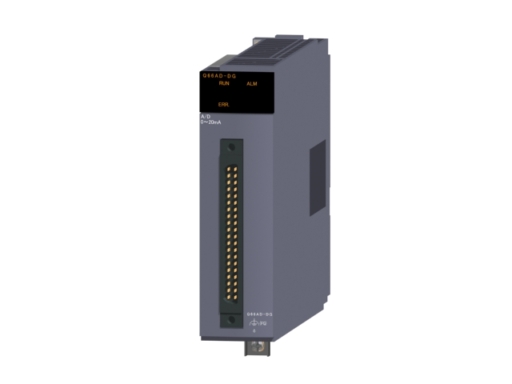

“Mitsubishi Q66AD-DG: 6-Channel 4-20mA Analog Input Module, 40-Pin”
6 channel analog input module, current type 4 to 20mA, 40 pin connector
| Series: | MELSEC-Q SERIES |
| Type: | ANALOG INPUT |
| Depth (mm): | 90 |
| Weight (kg): | 0,19 |
| Width (mm): | 27,4 |
| Height (mm): | 98 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 70 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 2 |
| Wood (g): | 0 |
| Other paper (g): | 11 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Ul/cul: | COMPLIANT |
| REACH Substance CAS Number: | 7439-92-1, 80-05-7, 3147-75-9 |
| Int. Current Consumption (A): | 0,64 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| Occupied I/O Points On PLC: | 16 |
| Wiring: | SCREW |
| Integrated Analogue Inputs: | 8 |
| Input Current Range (mA): | 0-20; 4-20 |
