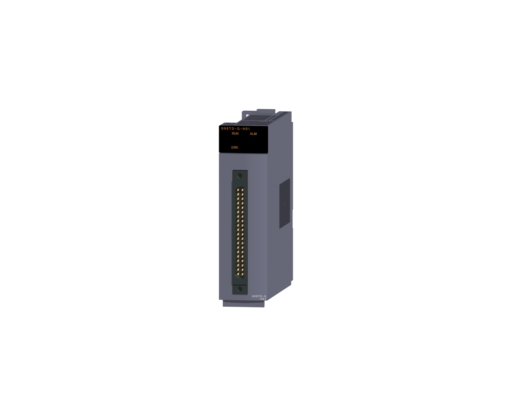

“Mitsubishi Q68TD-G-H01 Thermocouple Unit: 8-Channel with 40-Pin Connector”
Temperature Thermocouple unit – 8 channel, conversion speed 320ms/8 channel; 40 pin connector
| Series: | MELSEC-Q SERIES |
| Type: | TEMPERATURE INPUT |
| Depth (mm): | 130 |
| Weight (kg): | 0,22 |
| Width (mm): | 27,4 |
| Height (mm): | 102 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 55 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 24 |
| Wood (g): | 0 |
| Other paper (g): | 1 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Ul/cul: | COMPLIANT |
| REACH Substance CAS Number: | 108-78-1, 71868-10-5, 80-05-7, 96-13-9, 3147-75-9 |
| Int. Current Consumption (A): | 0,65 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| Occupied I/O Points On PLC: | 16 |
| Integrated Analogue Inputs: | 8 |
| Input Type: | THERMOCOUPLE |
| Applicable Thermocouple Type: | E, B, J, K, N, R, S, T |
