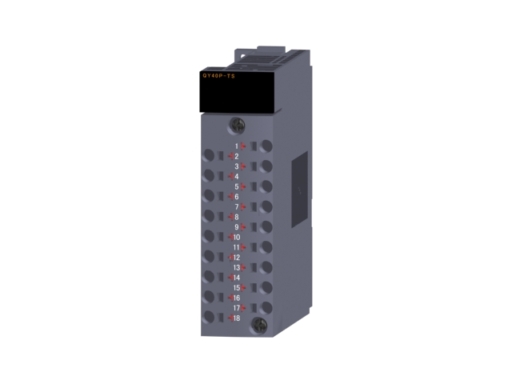

“Mitsubishi QY40P-TS Output Module: 12/24V DC, 16 Transistor Outputs”
Output module; 12/24 V DC; 0.1A, 16 transistor outputs sink-type; protected;
| Series: | MELSEC-Q SERIES |
| Type: | HIGH-SPEED TRANSISTOR OUTPUT |
| Depth (mm): | 90 |
| Weight (kg): | 0,1 |
| Width (mm): | 27,4 |
| Height (mm): | 98 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 0 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 2 |
| Wood (g): | 0 |
| Other paper (g): | 1 |
| REACH Limit Exceeded: | YES |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| Ul/cul: | COMPLIANT |
| REACH Substance CAS Number: | 7439-92-1, 68-12-2 |
| Int. Current Consumption (A): | 0,37 |
| Shipping Approvals: | ABS,BV,DNV GL,LR,NK,RINA |
| Occupied I/O Points On PLC: | 32 |
| Wiring: | CONNECTOR |
| Integrated Digital Outputs: | 32 |
| Output Type: | TRANSISTOR |
| Output Logic: | SINK |
| Rated Load Voltage (VDC): | 24-May |
