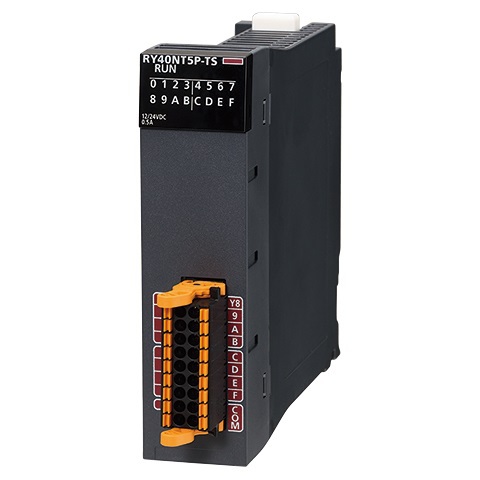

“Mitsubishi Transistor RY40NT5P-TS: 16-point 12-24V DC, 0.5A Output”
$435.60
Transistor (sink) output, 16 points: 12Â…24 V DC, 0.5 A,
| Series: | MELSEC IQ-R SERIES |
| Type: | TRANSISTOR OUTPUT (SINK) |
| Current Type: | DC |
| Depth (mm): | 129 |
| Weight (kg): | 0,13 |
| Width (mm): | 27,8 |
| Height (mm): | 106 |
| CE: | COMPLIANT |
| EAC: | NON-COMPLIANT |
| Ul/cul: | COMPLIANT |
| UKCA: | COMPLIANT |
| Aluminum (g): | 0 |
| Others (g): | 0 |
| Styrofoam (g): | 0 |
| Cardboard (g): | 45 |
| Steel (g): | 0 |
| Glass (g): | 0 |
| Other plastic (g): | 3 |
| Wood (g): | 0 |
| Other paper (g): | 26 |
| REACH Limit Exceeded: | YES |
| RoHS Compliance: | COMPLIANT |
| Dangerous Goods Class: | NO |
| WEEE: | B2B |
| Dangerous Goods Identifier: | NO |
| REACH Substance CAS Number: | 71868-10-5, 75980-60-8 |
| Int. Current Consumption (A): | 0,18 |
| Occupied I/O Points On PLC: | 32 |
| Wiring: | SPRING CLAMP |
| Power Supply (V): | 24-Dec |
| Integrated Digital Outputs: | 32 |
| Output Type: | TRANSISTOR |
| Rated Load Voltage (VDC): | 24-Dec |
| Output Logic: | SINK |
