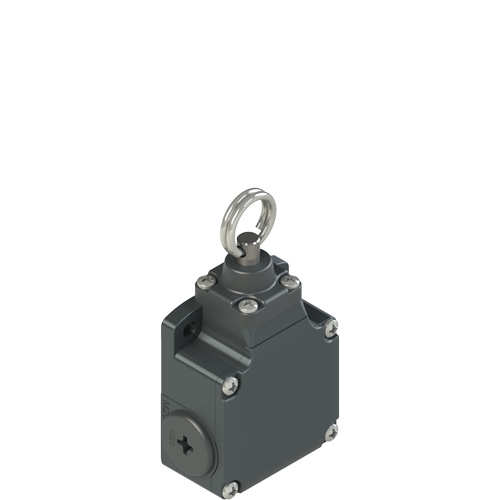

Pizzato FR 2076-M2 | Position switch for rope actuation
Position switch for rope actuation
Request a quote
| Attribute | Value |
|---|---|
| Protection degree: | IP66 according to EN 60529 |
| Housing: | Metal housing, three threaded M20x1,5 conduit entries |
| Head: | For rope actuation |
| Contact Block: | 1NO+2NC slow action |
| Marking: | II 3D Ex tc IIIC T80°C Dc |
| Note: | Actuator 76 in rest position keep contact block activated. Consequently all NO and NC contacts are inverted in rest position. |
| Product Number | Variant Description |
|---|---|
| FD 1076 | Position switch for rope actuation |
| FP 1076-M2 | Position switch for rope actuation |
| FL 2076-M2 | Position switch for rope actuation |
| FM 1076-M2 | Position switch for rope actuation |
| FZ 2076-M2 | Position switch for rope actuation |
| FD 1076-M2 | Position switch for rope actuation |
| FP 1076 | Position switch for rope actuation |
| FX 2076 | Position switch for rope actuation |
| FL 2076 | Position switch for rope actuation |
| FX 2076-M2 | Position switch for rope actuation |
| FZ 2076 | Position switch for rope actuation |
| FM 2076 | Position switch for rope actuation |
| FP 2076 | Position switch for rope actuation |
| FP 2076-M2 | Position switch for rope actuation |
| FD 2076-M2 | Position switch for rope actuation |
| FL 1076 | Position switch for rope actuation |
| FL 1076-M2 | Position switch for rope actuation |
| FR 2076 | Position switch for rope actuation |
| FD 2076 | Position switch for rope actuation |
| FX 1076 | Position switch for rope actuation |
| FM 1076 | Position switch for rope actuation |
| FZ 1076-M2 | Position switch for rope actuation |
| FZ 1076 | Position switch for rope actuation |
| FR 1076-M2 | Position switch for rope actuation |
| FX 1076-M2 | Position switch for rope actuation |
| FR 1076 | Position switch for rope actuation |
| FD 2076-M2T6 | Position switch for rope actuation |
| FM 2076-M2 | Position switch for rope actuation |
