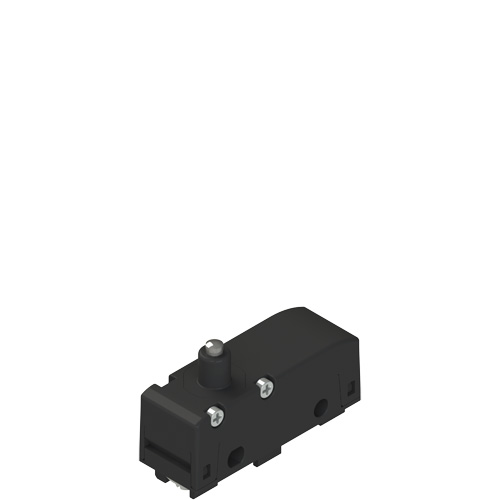

Pizzato MK V11D43-R10 | Microswitch
Microswitch
| Attribute | Value |
|---|---|
| Housing: | Technopolymer housing |
| Actuator: | With plunger |
| Contact Block: | 1NO+1NC changeover |
| Positive opening: | Yes |
| Ambient temperature: | From -25°C to +85°C |
| Terminal type: | Screws with self-lifting plate |
| Maximum protection degree: | IP00 without terminal coverIP20 with terminal cover VF C01, VF C03IP40 with terminal cover VF MKCx1x, VF C02 |
| Actuation type: | Direct action |
| Product Number | Variant Description |
|---|---|
| MK V11D43-R16 | Microswitch |
| MK H11D43-R10 | Microswitch with roller lever |
