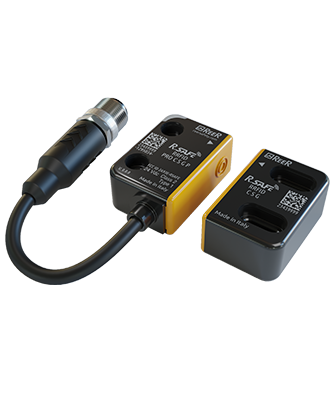

R-Safe RFID Pro C S G P
Pro Version. Combo, Sensor + Standard Actuator. Generic coding. Automatic restart. Individual status output. M12 Pigtail
| Attribute | Value |
|---|---|
| Product Class: | A |
| Custom tariff: | 9032890 |
| Safety Level: | PL e |
| Safety Level (SIL / PL): | SIL 3 – SILCL 3 – PL e – Cat. 4 |
| Operating temperature (°C): | – 25 … 70 |
| Response time (ms): | 55 |
| Safety Output Type: | 2 OSSD (300 mA at 24 VDC) with protection against short circuit |
| Safety Outputs: | 2 OSSD pairs (300 mA) |
| Safety Inputs: | 2 digital inputs |
| Sensor Type: | RFID switches |
| Materials Suitable For Food Applications: | Yes |
| Min. switching current at 24 VDC (mA): | 300 |
| Test Outputs: | 1 |
| LED signalling: | 3 colour LED status signalling |
| Coding type: | Generic Coding Actuator |
| Connection Type: | Pigtail |
