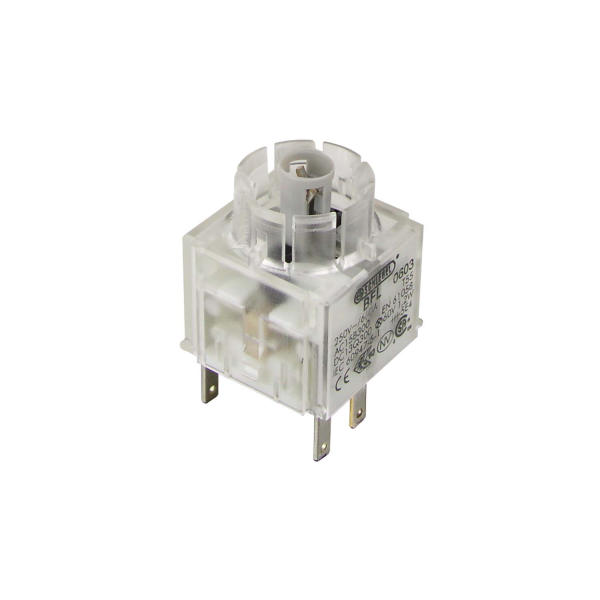

Schlegel BFL Contact Block Maintained 3 mm 1 x NC + 1 x NO Faston Terminals 2.8 X 0.8 Mm BFL
A silver, round M12 jack with 5-pins, diameter 22.3mm, 100cm long with RRJ_RJ45_STB code.
| Attribute | Value |
|---|---|
| Dimensions: | 5.8 × 3.8 × 2 in |
| Labeling Option: | No |
| Contact Type: | Faston Terminals 2.8 X 0.8 Mm |
| Lampholder: | W2x4,6d |
| Protection Class: | II (protective insulation) |
| Contact Equipment: | 1 x NC + 1 x NO |
| IP Protection Front: | IP00 |
| Illumination: | Yes |
| Material: | Plastic |
| Certifications: | CE, CSA, ROHS, UL |
| Product Group: | Contact Blocks |
| Product Series: | Contact blocks BT/BFÂ… |
| Travel: | 3 mm |
| Switching Function: | Maintained |
| Contact Material: | AgNi |
| Lifecycle: | 1 million switching cycles |
