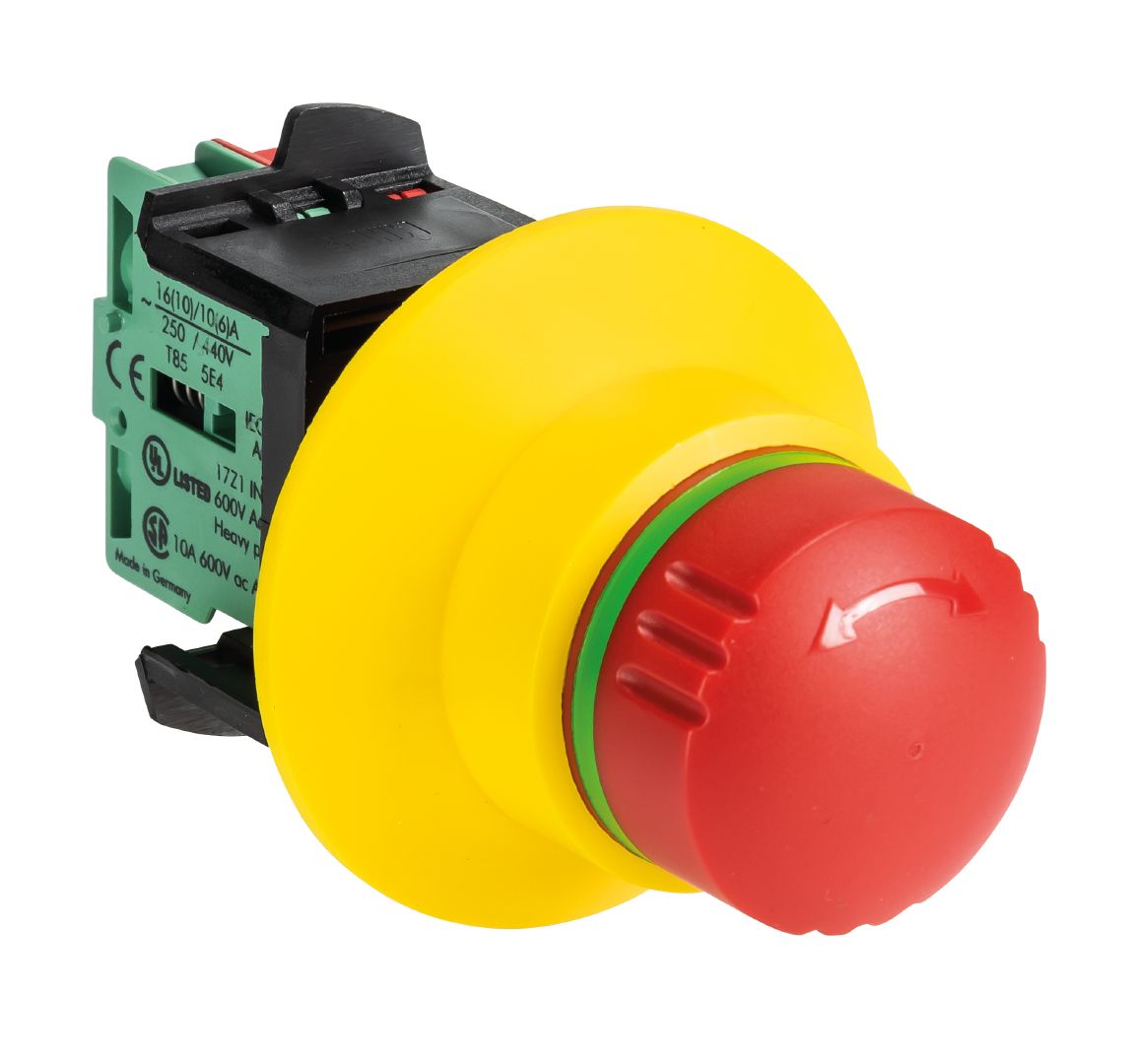

Schlegel FRVKOO_C001 SHORTRON 22.3 mm 2 x NC EN 60947-5-1 4-Pole M12 Connector, A Coded FRVKOO_C001
| Attribute | Value |
|---|---|
| Weight: | 1.6 lbs |
| Dimensions: | 2.8 × 1.5 × 3.3 in |
| Shape: | Round |
| Release: | twist right or left |
| Bezel Color: | Yellow |
| Color Actuator: | Red |
| IP Protection Front: | IP65 |
| Certifications: | CE, CSA, ROHS, UL |
| Illumination: | No |
| Labeling Option: | No |
| Antilock Protection: | no |
| Overload Protection: | yes |
| Panel Cutout: | Ø 22.3 mm |
| Lifecycle: | 50,000 switching cycles |
| Product Group: | Emergency Stops |
| Product Series: | SHORTRON connect |
| Contact Equipment: | 2 x NC, EN 60947-5-1 |
| Contact Type: | 4-Pole M12 Connector, A Coded |
| Contact Material: | AgNi |
| Mounting Depth: | 26.7 mm |
